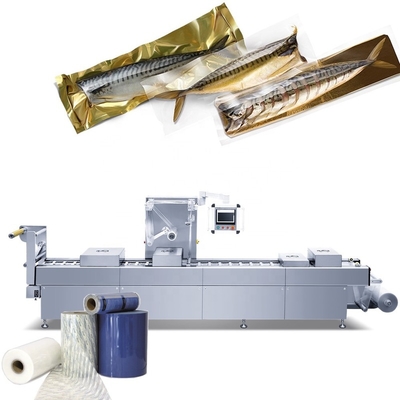

fish seafood vacuum thermoforming packing machine sausage cheese meat packaging machine maquina empaquetadora al vacio

1 Piece
MOQ
$32,600.00(>=1 Pieces)
Price
fish seafood vacuum thermoforming packing machine sausage cheese meat packaging machine maquina empaquetadora al vacio
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vacuum Packing Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops
Showroom Location: Canada, United States, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Chile, UAE, Colombia, Algeria, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Austral
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Hot Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Application: Beverage, Food, Machinery & Hardware, Medical, Commodity, Dates, Tofu, Cheese, Eggs, Meat, Biscuit Etc.
Packaging Type: Film, Foil
Packaging Material: Plastic, Aluminium Foil
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 240v/380V/415V/460V
Dimension(L*W*H): 6150mm*1210mm*1910mm
Weight: 1720 KG
Warranty: 1 Year
Key Selling Points: Form Bag, Vacuum, Seal, Cut
Material: 304 Stainless Steel
Vacuum Pump: BUSCH Pump
Function: Form Container, Vacuum, Seal
Gas Fill Function: Optional
Video For Test/train: Available
Packing Speed: 4-5 Cycles/min
Advantage: High Speed, Save Labor And Material Cost
Keyword: Vacuum Thermoforming Packaging Machine
Product Keywords: Thermoforming Packing
Name: Automatic Thermoforming Vacuum Packing Machine
Basic Infomation
Payment & Shipping Terms
Packaging Details: export wooden carton
Supply Ability: 10 Unit/Units per Month
Product Description
Advantage
--- High production output
--- Reduce consumption of package material
--- Easy to operate
--- Save man power
--- Food more healthy
--- Totally customized
fish seafood vacuum thermoforming packing machine sausage cheese meat packaging machine maquina empaquetadora al vacio
Machine parameter and details
Parameters
Usually, machine will be individually customized as per client actual need. Price requoted for them.
Price online is with following standard parameters.
Model
DLZ-230T
DLZ-320T
DLZ-420T
DLZ-520T
Material
90% food grade 304 stainless steel + 10% aluminium alloy
Film type
Flexible package with serrated edge



Film width
200/232mm
290/322mm
390/422mm
490/522mm
Step length
180-230mm
230-320mm
320-420mm
420-520mm
Air pressure
Pressure 0.6-0.8Mpa, supplied by air compressor which has min 200L gas tank.
Voltage
380V/415V/460V 50HZ/60HZ 3Phase
Power
15-18KW
Language
English/Spanish/Russia/Chinese/Arabia for options
Function
Forming container, put food by hand, vacuum, seal, cut
Vacuum pump
Busch 100m3/h
Busch 100m3/h
Busch 200m3/h
Busch 200m3/h
Overall size
(L*W*H)
4000*800*1880mm
5200*900*1880mm
5500*980*1880mm
5800*1050*1880mm
Weight
1500KG
1700KG
1900KG
2100KG
Mold number
1 mold for standard machine. Able to support maxi 3 molds
Cut system
Cross/rolling cut
Price
30688USD
32580USD
38256USD
43140USD
* Above parameters is for standard model DLZ-320T/420T/520T.
* Usually, machine will be individually customized as per client actual need, and price depends on requirement details.
* Standard language is English, client shall specify if need other language.
* The machine can be equipped with gas fill function. We will put special hole punch for that, and make machine 30mm wider. It is with extra cost 2000USD.
* Air compressor cost additional 2000USD for air compressor.
* Ink jet printer is optional. Additional cost is 7500USD.
* Chilling box to keep recycling water cool all the time, additional cost is 1500USD.
Large range of packs and application

1. Application

Perfect for various products such as fish, meat, cooked rice, egg, cheese, sweet corn, dates, cut fruit / vegetables, tofu, sausage, and other products etc.

Advantage
Food after packed with this machine will be with
a. Longer shelf-life
b. Nice appearance.
c. Protect from contamination.
d. Easy tear
e. Small volume & easy to store.
f. Less waste problems and more economic.
g. Totally customized design for package

2. Packaging materials
Up film
Un printed or printed films
Mono or composite films
0.08-0.12 mm thick
Down film
Flexible/rigid film for stretch purpose
0.2-0.3 mm thick


Format change for various mold

1.Forming tools and various mold

All the molds will be individually made for required pack size/shape as client. It's related with price.

If have only one pack size

a. Form tools individually produced as per your actual pack size/shape.

b. Support different depth in same mold.

c. Online price include one pack size.

If have multi pack size

a. Each pack size/shape require one mold.

b. Format size fixed, so that all molds can share same format.

c. One machine support maxi 3 different molds.

d. About 1500 USD charge for each extra mold.
Machine details and more device
Machine details
Package material
Just put up/down films roll, the machine will form container for food, then seal films together.
Photo sensor
Install a photo sensor specially for printed film, so that it can detect position of film and seal correctly.
Minimun film consumpt
The film scrap only about 30mm on its edge.
Device for film scrap
The wheels will gather film scrap together. Client can easily remove it from wheels.
Output with conveyor
Machine will gentlely send finished packs with conveyor, then they will move to other systems.
Separate pack chamber
In this chamber, machine will vacuum/gas fill/seal.
Touch screen
The machine is controlled by PLC+touch screen.
Chinese / Saudi / Spanish / Russia / English language are optionals.
Changeable molds
It's easy to convert molds for different packs size.
It can support maxi 3 different molds in the same machine.
Busch vacuum pump
Our Busch vacuum pump is imported from its German company.
Not from its China OEM factory.
How to get quotation and process order
What information from client is neccessory for correct quotation?
1. What if your product?
2. Offer package picture, to show which kind of package do you want to get?
3. What's demension of your pack? If you're not sure for that, we need know how many product do you plan to put in each pack?
Shipment term?
1. We ship under FOB or CIF by sea usually.
2. If client require DDP or DDU, please offer details address, we will offer accordinlgy.
Payment?
40% prepayment before production, balance before shipment.
Lead time?
30-60days after prepayment.
Do you test machine before shipment?
Client shall offer his sample of film roller / his product, we will test machine with given samples, and make sure machine under good condition before shipment.
How to install machine before running?
it's easy. Just follow our online training video https://youtu.be/rIrvwgO78C0
After sale service?
If there's any problem, just offer videos, pictures of all touch screen pages, we will study and guide online. Usually problem can be solved this way.
If neccessory, our engineer is ready to fly oversea.
About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
Wechat/whatsapp: 008615057546776
Email: emma.vac(at)cnruibao.cn
