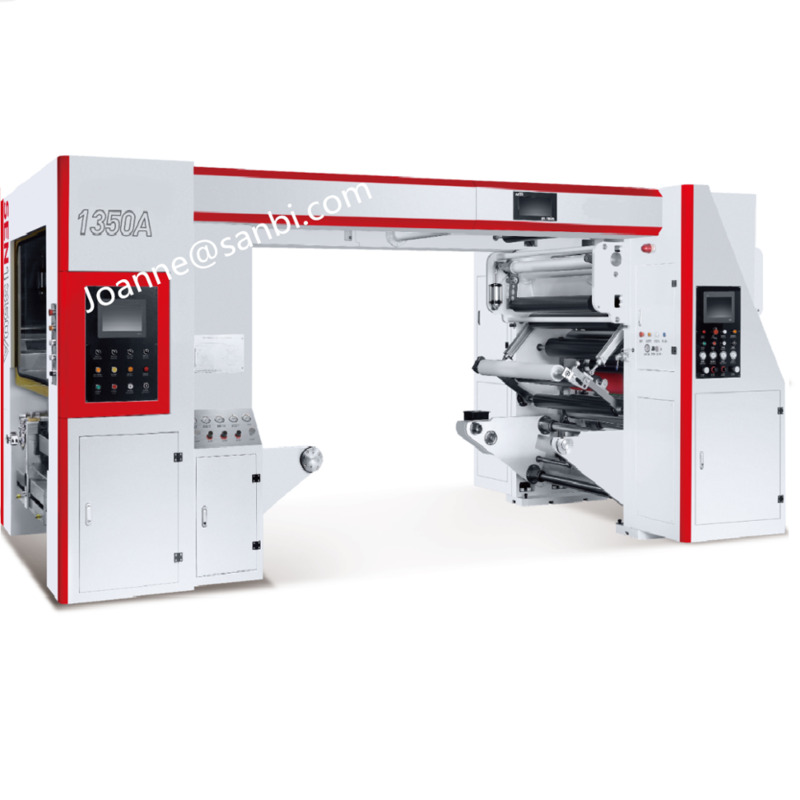

Our Solventless Laminating Machine is a product developed by our company in combination with the current matured solvent-free laminating process.According to the characteristics of the solvent-free laminating process itself, especially the key problems such as low initial viscosity and difficult to control the amount of glue applied, this model has carried out a number of targeted measures in mechanical structure, control mode, safety protection and appearance modeling Innovative technology.Suitable for different types of film, paper and aluminum foil's high-speed laminating, with advantages of high efficiency, good performance, the product without solvent residue and so on.The full set of drawings by the South Korean design, is currently the most advanced solvent-free laminating machine.
Main Technical Parameter :
model | BSEN-1050A | BSEN-1350A |
Printing Material's way | Left to right | Left to right |
Mechanical Speed | 580m/min | 580m/min |
Max Laminating Speed | 500m/min | 500m/min |
Max coating width | 1050mm | 1350mm |
Max roll width | 1050mm | 1350mm |
Unwind paper core | 3''=76mm and 6''=152mm | 3''=76mm and 6''=152mm |
Rewind paper core | 3''=76mm and 6''=152mm | 3''=76mm and 6''=152mm |
Unwind tension range | 3--40kg(400N) | 3--40kg(400N) |
Rewind tension range | 4--55kg(550N) | 4--55kg(550N) |
Max roll weight | 1000kgs | 1000kgs |
Coating range | 0.8-3g/sm | 0.8-3g/sm |
Dimension | 5100x3000x2400MM | 5100x3300x2500MM |
Power | 52KW | 60KW |
Weight | 14000KGS | 16500KGS |
Machine power supply | 3p/380/50hz | 3p/380v/50hz |
1) Accurate coating amount control and easy adjustment;
2) High Laminating Quality
3) Highly User-friendly
4) Machine safety is good, stable and reliable;
5) Easy operation
Name: Full Servo-controlled Five-roller coating system
Original: China and Korea
In the Production process, the scraper roller separates from the maetering roller and reset after cleaning. The error before and after reset is 0.001mm, users don't need a feeler gauge to adjust the gap anymore
Name: KAMO BALL REDUCER
Original: JAPAN
The gap between scraper roller and metering roller check the initial coating amount, it is adjusted by Japan KAMO ball reducer and the adjust precision is ±0.001mm
Name: Exhausting system
Original: China
Exhausting system on coating unit .
The machine is equipped with a stainless steel adhesive exhausting system. The system includes: a sliding safety cover with safety glass, closed Space around the coating unit and exhausting motor of 1.1KW.
Name: Tension system
Original: China and Korea
tension is controlled by floating rollers, control components from japan, Inovance PLC control system,
3inch and 6 inch universal shaftless unwinder
Ultrasonic EPC web guide(Taiwan PAUSOURCE)
Unwind motor:7.5KW(TaiWan FUKUTA Servo motor + Inovance inverter)
Ultrasonic EPC web guide(Taiwan PAUSOURCE)
PLC system(Inovance)
Single station rack 1set
3''shaftless pneumatic material loading rack(optional 6'') 1set
Rewinding motor:11KW(Taiwan FUKUTA Servo motor + Inovance inverter) 1set
Tension detected by floating rollers (Japanese Fujikura low friction pneumatic cylinder
Precision pneumatic adjuster,Japanese SMC proportional valve) 1set
Pneumatic contact pressure roller 1set
PLC system(Inovance)
Korea imported wallboard and machine parts
Fully automatic glue mixer
PLC control system (Japan Mitsubishi)
servo motor +servo motor driver(Taiwan Delta)
touch screen(Taiwan Weinview)
Packaging | ||
Size | full 40feet container | |
Weight | 14T | |
Packaging Details | The normal package is wooden Plate/box . If export to some countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | full 40feet container | |
Weight | 14-16T | |
Packaging Details | The normal package is wooden Plate/box . If export to some countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
