Home /Products/Foil Container Making Machine/Food China Supplier Automatic Bottles Double Side Labeling Machine

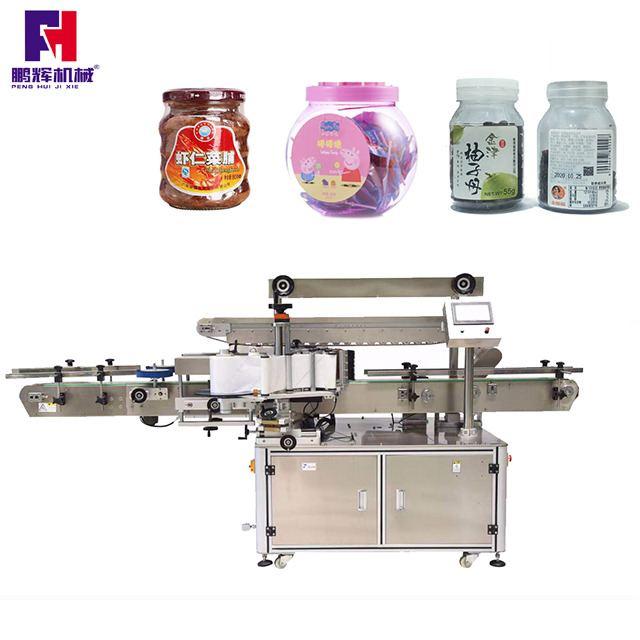

Food China Supplier Automatic Bottles Double Side Labeling Machine

1 Set
MOQ
$11,300.00(>=1 Sets)
Price
Food China Supplier Automatic Bottles Double Side Labeling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: LABELING MACHINE
Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Showroom Location: None
Condition: New
Application: Food
Packaging Type: Bottles,Jars
Packaging Material: Plastic, Glass
Automatic Grade: Automatic
Driven Type: Electric
Voltage: AC220/380
Dimension(L*W*H): 3000X1450X1600mm
Weight: 350 KG
Warranty: 1 Year, 12 Months
Key Selling Points: High-accuracy
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: PLC
Product Name: Automatic Double Side Labeling Machine
Applicable Product: Round,flat And Square Bottles
Material: Stainless Steel 304
Labeling Speed: 30-80PC/min
Power Supply: AC220/380V 50-60Hz
Dimension: 3000X1450X1600mm
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Basic Infomation
Payment & Shipping Terms
Packaging Details: The machine parts are packed with wrapping film and wooden case, suitable for container transportation
Product Description
Product Overview

Fully automatic double side labeling machine

Function: Dedicated to flat bottle, square bottle single/double-sided labeling and cylinder bottle labeling or positioning labeling

Automatic round bottle labeling machine

Function: Dedicated to labeling or positioning labeling on the side of the circumference of cylinder bottle
————————————————————————————————————————————————
This labeling machine is specially designed and specific. After being familiar with this equipment, it can be applied to labeling cylinder bottle in other industries, such as canned food, cosmetics cylinder bottle, medicine bottles, etc. Can be customized according to customer product requirements. Optional auto bottle unscrambler, filling machine, lidded machine, melting cover machine, can sealing machine, turntable cap screwing machine, cap presser, aluminum foil sealing machine, coding machine, code-spraying machine and other equipment.
Products Description
Details Images
Flat bottle positioning entry
Accurately stick it on the bottle
Roller reinforcement sticker
Sticker placement details
Enter cylinder bottle
Four roller auxiliary paste bottle
Product configuration
Fully automatic double side labeling machine
Automatic round bottle labeling machine
Product Name
Fully automatic double side labeling machine
Product Name
Automatic round bottle labeling machine
Packaging Type
Bottle, jar
Packaging Type
Bottle, jar
Packaging materials
Glass, Plastic
Packaging materials
Stainless steel 304 and advanced anode aluminum profile
Function
Dedicated to cylinder bottle, flat bottle, square bottle single or double-sided labeling and cylinder bottle labeling or positioning labeling
Function
Dedicated to labeling or positioning labeling on the side of the circumference of cylinder bottle
Material
Stainless steel 304 and advanced anode aluminum profile
Material
Glass, Plastic
Size (L * W * H)
3000 × 1450 × 1600mm
Size (L * W * H)
2000 × 1150 × 1500mm
Power supply
AC220/380V 50-60Hz
Power supply
AC220/380V 50-60Hz
Applicable label size
Length 20-200mm
width 20-110mm
label scroll inner diameter 76mm
label scroll outer diameter 330mm
Applicable label size
Length: 20-400mm
width: 20-120mm
Labeling accuracy
± 1mm (excluding product and label errors)
Labeling accuracy
± 1mm (excluding product and label errors)
Labeling speed
30-80 pieces/minute
Labeling speed
30-60 pieces/minute
Model
PH-STB
Model
PH-TB
Origin
China
Origin
China
Brand
Penghui
Brand
Penghui
Warranty
12 months
Warranty
12 months
Weight
350KG
Weight
200KG
Condition
New
Condition
New
Application
Food and daily necessities
Application
Food and daily necessities
Automatic grading
Automatic
Automatic grading
Automatic

Product configuration

1. Put the bottle into bottle unscrambler. (Supporting bottle-free alarm device)
2. Test the bottle by photoelectric system. (No bottle to stop blanking)
3. It is expected that the Hopper anti-blocking device above the bottle starts to vibrate to achieve balanced blanking to prevent feed down pipe blockage due to material bonding.
4. The filler is expected to the requirements of the bottle and is brought to another turntable through the conveyor belt.
5. Automatically download EoE and seal cans through can sealing machine.
6. Automatic hanging cover and gland.
7. Automatic labeling.
8. Finished product output.
We have the most complete food packaging machines and other high- quality matching machines here.
* Automatic bottle sorting
* Material lifting and conveying
* Material weighing
* Multi-station filling
* Check the weight
* Automatic sealing aluminum foil
* Lid lifting and capping
* Finished product conveying
* Stick Mark charge and laser code spraying.
Lifting Machine
Automatically arrange lift cover,the cover is sent to the cover hanger by the slide rail
Bottle Cutting Machine
Automatic position the bottles and arrange them neatly
Rubbing Cover Machine
The silicone roller automatically tightens the cap

Full Automatic High Speed Can Sealing Machine
Rotating Cap Machine
Cylinder bottle labeling machine
Our Advantages
1. Improve production efficiency and reduce costs
2. Improve product quality and upgrade product grade
3. Improve hygiene standards
4. Save 4-10 people

Pre-sales service:

1. We will make the most appropriate equipment combination according to your actual needs, so that the equipment can adapt to your Factory space.
2. We will develop a specific equipment plan based on your specific product to meet your product needs.
3. We will recommend and provide machines according to customers' usage and purchase budget.

Sales service:

1. Test the machine and make videos for customers to check.
2. We will choose the way of packing and shipping according to the actual needs.

After-sales service:

1.We guarantee for one year
2.We will provide our customers with video tutorials to install and use so that they can learn to use them.
Product packaging
Packaging Details ：The machine parts are packed with wrapping film and wooden
case, suitable for container transportation
Port ：Shantou/Shenzhen
Lead Time ：In 30 days after deposit received.
（ Details are subject to negotiation ）
Film sealed packaging
Wooden case binding
Assembly Workshop
A series of secure packaging
Domestic adjacent delivery
Port container loading
Certifications
FAQ
Q1 ：Do you have operation video for us to know more about the machine?
A1 ：Yes, have operation video,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2 ：How can we make sure about the machine quality after we put the order? A2 ：Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q3 ：The website of your store does not look high-end. Will your products also be high-end?
A3 ：Our website is not exquisite enough, and we will try our best to improve it. But you can rest assured of our products. We put a lot of energy into product development and production. This is also one of the reasons why our products are sold well. I hope our professional service and good products can make up for the lack of beauty in the store.
Q4 ：Excuse me, my bottles and prefabricated bags are not similar to your sample pictures. Can you customize it for me? A4 ：No problem, it is one of our characteristics to customize machines that conform to users' products for users. Even if it is only to buy one, we can also customize non standard customization
Q5 ：How can I trust you for the first time business ? A5 ：Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Shantou Penghui Machinery Co., Ltd

Address: East Erheng Yuepuyuehua Industrial Zone, Jinping District, Shantou City, Guangdong Province
Tel:0754-82483418               Fax:0754-82483428
         QQ:2925754108           Website:www.stpenghui.com.
