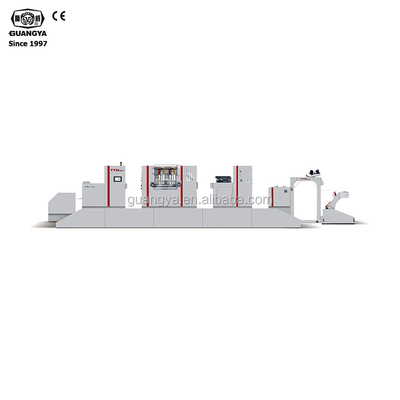

Hot Foil Stamping TYM 1400JT Web-fed Hot Foil Stamping Machine For Roll Paper

1.0 Sets
MOQ
Hot Foil Stamping TYM 1400JT Web-fed Hot Foil Stamping Machine For Roll Paper
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Heat Press Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Condition: New
Plate Type: Hot Stamping Machine
Model Number: TYM 1400JT
Usage: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer
Automatic Grade: Automatic, Automatic
Color & Page: Multicolor
Voltage: Customization
Dimensions(L*W*H): 1300*5000*2200 MM
Weight: 26000 KG
Warranty: 1 Year
Key Selling Points: Automatic
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, PLC, Gear, Bearing, Gearbox
Product Name: TYM 1400JT Web-fed Hot Foil Stamping Machine
Function: Hot Stamping, Die Cutting, Embossing, Bending
Application: Hot Foil Stamping
Machine Type: Hot Foil Stamping Machine
Color: Grey
Raw Material: High Code Iron Cast
Max. Paper Sizes: 1400*750 MM
Advantage: Strong Iron Cast, Long Machine Life.
Max. Working Fouce: 250 T
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location: United States, Philippines, Brazil, Indonesia, Thailand
Showroom Location: Philippines, Peru, Mexico, Russia
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Certification: CE
Marketing Type: Hot Product 2020
Basic Infomation
Certification: CE
Model Number: TYM 1400JT
Payment & Shipping Terms
Packaging Details: standard exporting packing
Supply Ability: 45 Set/Sets per Month
Product Description
Product Description

TYM 1400JT web-fed hot foil stamping machine for roll paper is specially designed for Roll material hot foil stamping process,  it could use for hot foil stamping for roll paper, multi material, roll plastic film. This machine equipped high precision edge correction device and color mark sensor could makes your products all in right location. By the web-fed feeding method, your job saves at least 8 mm by each printing cycle.

Max. paper diameter
1200 MM
Max. paper feeding kength
750 MM
Max. effective area
1400*750 MM
Max. stamping speed
6000 Time / H
Foil pulling shaft
Longitudinal 2, Transversal 2
Individual zones of heating plate
12 zones, each zone 2 KW
Main motor power
15 KW
heated plate power
36 KW
Paper range
80 - 500 GSM
Max. working pressure
250 T
Machine weight
26000 KG
Overall machine dimensions
13000*5000*2200MM
Applied materials
Not only roll paper, TYM series machine suit for material like, cardboard, kraft and multiple kinds of plastic roll material.

  • Function

Not only hot foil stamping, but also creasing, embossing functions are available om this machine. Suit for box, carton, paper bag and non-woven bag producing.
Detailed Images
Thanks to the high code iron cast, our machines got 25% to 28% more stronger than most normal machines in the market which make the machines life longer. It saves at least 20% time for changing lubricating oil with the automatic lube oil pump and reduce the probability of loss due to lack of lubrication.
Packing&Shipping

Deep clear

Vacuum Packing

Container loading

We clean the equipment before packaging, then use film packaging to prevent secondary contamination, and finally use a fumigation high-strength wooden box. In order to provide maximum protection for the equipment.
Company Introduction
Before “GUANGYA”, its founder Mr. Chen Shao Rong had been working in platen die cutting machine manufacturing for more than 10 years as engineer and designer. Then at 1996, together with his friends, the “GUANGYA MACHINERY CO., LTD.” was established in a very small plant. And they start producing ML series die cutting machine. At the second year, 1997. The TYMC series hot foil stamping machine start its manufacturing. The new century brings new challenges. In the next coming year, the TL series, the LK series and the TYM series automatic die cutting machine and hot foil stamping machine becoming very important product line of “GUANGYA”. “GUANGYA” also becoming one of the most famous manufacturers in China for post-press equipment. The year 2015, the new plant of “GUANGYA” put into use, the developing of “GUANGYA” meeting a new stage. We “GUANGYA” people are ready for new challenge.
FAQ

What product you produce?

we are manufacturer of die cutting machines and hot foil stamping machines. Our products include full automatic / semi automatic type. Suit for sheet material and roll material.

Where is your factory location?

transportation nearby. Airport: Wenzhou Air port. Railway Station: Ruian Railway Station, Aojiang Railway Station

Manufacturer or trading company?

we have been worked on the industry of die cutting and stamping machine as a manufacturer for more than 20 years and from now on, we would carry on to offer products with good quality to our customers as what we had done in the last two decades.

How about the warranty policy of your company?

1. we offer our customer brand new "SHIWEI" & "GUANGYA" machines. 2. every brand new machine from us with one year warranty. 3. after one year warranty, the machine still have whole life after-sales service and spare parts supporting.

Why choose us?

focus on Die Cutting and hot foil stamping machine since the year 1995, nowadays, our machines running in more than 80 countries. We know much about what quality means, we care more about your feeling when using machine.
