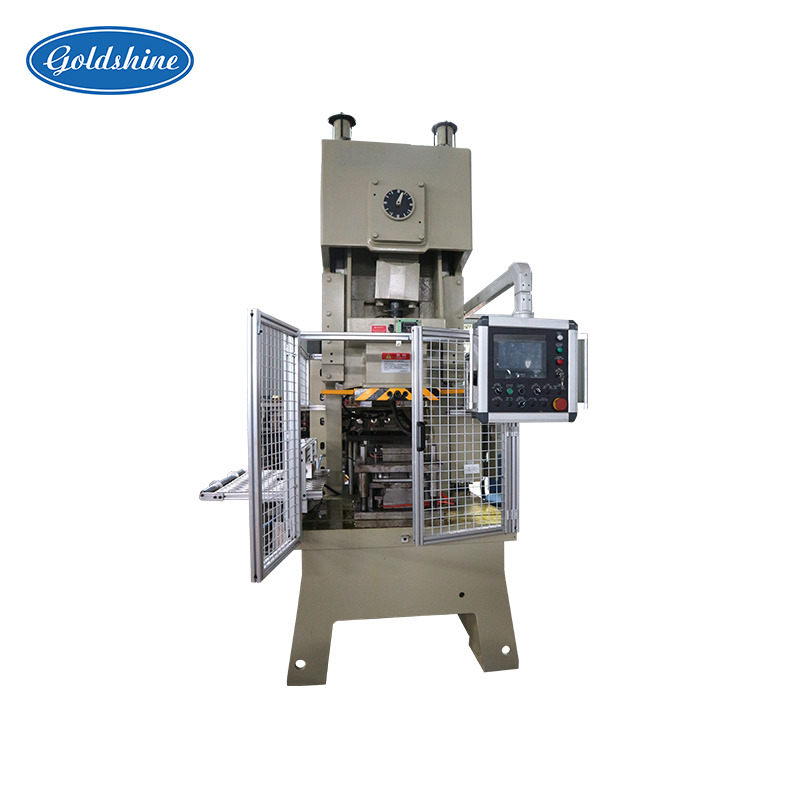

Automatic Hotels Aluminum Foil Container Press Machine

1.0 Sets
MOQ
Automatic Hotels Aluminum Foil Container Press Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Coil Slitting Machine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Hotels, Restaurant, Home Use, Food Shop
Showroom Location: None
Product Name: Automatic Aluminum Foil Container Press Machine
Machine Part 1: Feeding Machine
Machine Part 2: High Accuracy Press
Machine Part 3: Scrap Collecting Machine
Machine Part 4: Belt Conveyor
Machine Part 5: Mould
Driven Type: Electric And Pneumatic
Automatic Grade: Automatic
Control System: Siemens CPU216 Programmable Control System
After-sales Service Provided: Online Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden box,film packaging for Goldshine Aluminum foil container making machine
Supply Ability: 5 Set/Sets per Month for automatic aluminum foil container press machine
Product Description
Product Description

Performance Characteristic

1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.
2. Feeding, punching, scrap collecting is running automatically.
3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.
4. Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 999mm.

Main specifications and technical parameters

1.Feeding machine

2.High Accuracy Press

Model
JF21-45
JF21-63
JF21-80
JF21-110
Nominal Pressure
(KN)

450

630

800

1100
Slide Block Strok
(mm)
100-260mm
120-260mm
140-260mm
150-260mm
Slide Stroke Per Minutes(/min)

70-50

70-50

60-45

50-40
Maximum Die Set Height(mm)
270-400
310-450
325-450
345-500
Die Set Height Adjustment(mm)
60mm(2.36)
70mm(2.76)
80mm(3.15)
90mm(3.54")
Slide Bottom Size
 (mm)
410*340mm
480*400mm
560*460mm
630*520mm
Stemhole Size(mm)
φ60*60mm
φ60*65mm
φ60*75mm
φ60*85mm
Bolster Surface Size
(mm)
810*440/990*750mm
870*520/1000*800
1000*600/1200*800
1100*680/1300*800mm
Total Power
 (KW)
5.5
5.5-7.5
7.5-11
11-15
Weight(kg)
3800-4500
5500-6300
8000-9000
11000-12000
Overall Dimension Before Changed(mm)
1440*1080*2300mm
1610*1200*2500mm
2000*1300*2900mm
2030*1500*3130mm
Overall Dimension After Changed(mm)
1550*1150*2500mm
1800*1300*2700mm
2200*1450*3100mm
2300*1600*3300mm

3.Mould

Material Name of Mould
Steel Alloy
Origin
High Chrome Steel
DC53
Japan
High Chrome Steel
SKD11
Japan
9CrWMn
K460
Austria
Chrome Steel
Cr12mov
China
Chrome Steel
Cr12
China
Steel
S50C
Japan
The Mould holder is made of Precise hardware steel plate
covered with four column copper base steel ball .
Guide pare(Order)
Guide Pare(Material)
Mould Holder Material
MISUMI
SUJ2
S50C(Japan)

4.Scrap Collrcting Device

Detailed Images

Machine Parts

Name: Automatic feeding device

Brand: Goldshine

It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.

Main Parts

Name: press parts
Flatten aluminum foil to make aluminum foil better fit the mold.

Machine Parts

Name: Control system
Brand: PLC
Duplex safety valve are used to achieve emergent stop,inching,sing action and continuous operation. Electric adjustment of mould load height is adoped,enabling eady operation.

Main Parts

Name: Mould
The mould adopts aeroelasticily resilience device,and our advantages of the mould have kong shelf life,stable quality,high precision and resaonable desigh.
