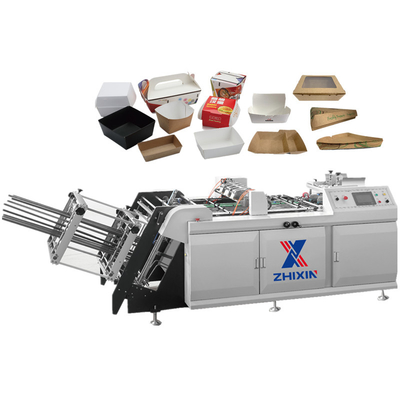

ZX-1200 industry hot sale high speed automatic water based adhesive ackaging glue sealing carton food erecting burger box machine

1 Set
MOQ
$15,000.00(>=1 Sets)
Price
ZX-1200 industry hot sale high speed automatic water based adhesive ackaging glue sealing carton food erecting burger box machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Food P[ackaging Industry
Showroom Location: Chile, Romania
Condition: New
Product Type: Carton Erecting Box Machine
Processing Type: Forming
Voltage: 380v
Power: 4.5KW
Dimension(L*W*H): 2950*1300*1300MM
Weight: 2000KGS
Warranty: 1 Year
Production Capacity: 100%
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: Ce
After-sales Service Provided: Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Model: ZX-1200
Name: Carton Erecting Box Machine
Usage: Food Paper Box Making
Glue Type: Cold Glue
Glue Material: Water-based Glue
Speed: 80-180pcs/min
Control System: PLC
Function: Different Boxes Making Machine
Raw Material: 180-600gsm Card Board /ivory Paper/ Corrugated Paper Thickness :1.5mm
Basic Infomation
Certification: ce
Model Number: ZX-1200
Payment & Shipping Terms
Packaging Details: wooden case satand for sea transpotation. Hot Sale High Speed Automatic Water-based adhesive Glue Sealing Carton Erecting Hamburger Box Machine
Supply Ability: 30 Set/Sets per Month
Product Description
Product Application

                           Hot Sale High Speed Automatic Water-based adhesive Glue Sealing Carton Erecting Hamburger Box Machine

          Automatic Paper box making mahcine can making many differnet kinds of paper box by changing mold.

Such as hamburger paper box, chips paper box, hot dog paper box, take away paper box, trangle pizza paper box, square paper box with window, etc

       With firm structure, high quality, low noise and high efficiency. It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
SPECIFICATIONS FOR  PAPER BOX  MACHINE
Speed
80-180pcs/min (different paper box shapes,
the speed is different )
Paper material
180-600gsm card board /ivory paper/
corrugated paper thickness :1.5mm
Paper size
Box length: L 100-450mm and angle: 5° -40°

Box width :B 100-580mm
 Edge height H 15-200m
Box size
Max: 450mm*400mm, Min:50mm*30mm
 Air requirement
6kg/cm²*200 L/min
Power
4.5kw/h
Voltage
220v  / 380v,  50hz
Machine size
3.5m(L)*1.3(W)*1.3(H)
Weight
2000kgs

Main Features

1) Machien can add automatic cold glue system.

2) Automatic paper box counting label unit.

3) All machine servo motor, much more quietness, and less power consumption.

4) PLC+HIM control Machine, more easier operating.

Details
Detailed Images

Machine Parts

Name: All machine screws

Material: stainless steel

Original: China

Better details for machine,  suit for long time sea transport.do not rust.

Machine Parts

Name: Dam-board
Material: Algam
Original: China
Dam-board underneath paper transfer part , paper waste will no drop on ground, protect flywheel system running.

Machine Parts

Name: Magnetic valve
Brandl: AIRTAC
Original: TAIWAN

Machine Parts

Name: BearingS
Brand: NACHI-QUEST
Original: JAPAN
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
paper box machine Packaging
Size
2.95(L) * 1.4 (W) * 1.4 (D)
Weight
2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Food paper box machine Packaging
Sea transport



Packaging Details
20GP     L × W × H(m)           Weight  CBM
Iinner: 5.898×2.352×2.385   17.5t    28m³
Outer :6.058×2.438×2.591   17.5t    28m³

40GP L × W × H(m)              Weight   CBM
Iinner: 12.032×2.352×2.385   26t     58m³
Outer:12.192×2.438×2.591     26t    58m³
