Features

Specifications

Warranty: 1 Year, 1 Year

Type: Other

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Condition: New

Application: Machinery & Hardware

Packaging Type: Film

Packaging Material: Plastic, Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V/50HZ

Power: 4kw

Weight: 1500 KG

Dimension(L*W*H): Machine Model

Key Selling Points: High-accuracy

After-sales Service Provided: Engineers Available To Service Machinery Overseas

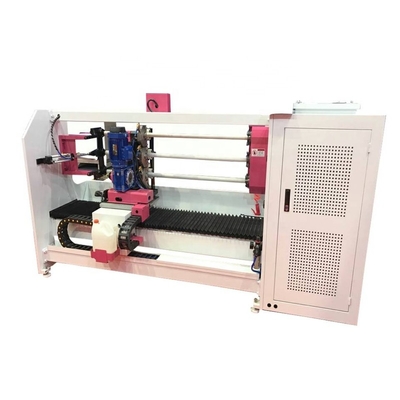

Product Name: Tape Cutting Machine

Valid Width: 1.0/1.3/1.6m

Max Cutting Diameter: 150mm

Min Cutting Width: 1mm

Cutting Accuracy: Â±0.1mm

Using Pipe Diameter: 25.4/38/76.2mm

Cooling Way: Oil And Cold Water

Slitting Speed: 20-45 Cuts/min

Basic Infomation

Payment & Shipping Terms

Packaging Details: Standard sea export wooden package

Supply Ability: 15 Set/Sets per Month

Product Description

Product Application

Suitable for cutting all kinds of tape,such as BOPP tape , masking tape,PE foam tape,kraft tape,double side tape,medical tape,PVC tape,insulation tape,electrical tape etc.

SPECIFICATIONS FOR adhesive tape cutting machine
Main motor			AC-5HP+Shinlin Inverter
Size control			1KW Servo motor+ PLC
PLC control system			Mitsubish
Failure detection			Automatic detection system
Moving system			High precision linear slide rail, high precision ball screw
Cutting control			Hydraulic system + PLC
Round knife cool and clean			Automatic water spray cooling with carpet cleaning
Main cutting shaft			1.5" steel shaft with PE shaft sleeve
Cutting round knife			Φ180mm, imported from Taiwan
Main shaft bracket			Moving with the knife holder

Main Features

1. Automatic control of PLC system with LCD touch screen control panel , 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.

2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.

3. AC motors for cutting blade and cutting shaft with inverters speed changing .

4.Positioning system for cutting: servo motor to control more accurate position.

5.Sliding system,high precision liner sliding track and ball screw.

6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.

Detailed Images

Machine Parts

Name: main motor with frequency Taiwan Shilin inverter

AC motors for cutting blade and cutting shaft with inverters speed changing

Main Features

Name: Servo motor

The first servo motor control cutting width, with precision ball screw and slide, high precision cutting.

The second servo motor control cutting feed power directly, do four speed settings in order to achieve high-speed, high-quality cutting.

Machine Parts

Name: Automatic cutting shaft exchange.

The cylinder drive positioning gear to drive the active spline.
Make sure the fast and accurate change of log roll but without stopping during cutting,Save the loading and unloading time and increase the productivity.

Main Features

Name: Touch screen

All functions are operated on LCD touch screen(10.4")from Taiwan, which is easy for operation and data setting.

Certifications

Our Company

Shijiazhuang Goodi Trade co.,ltd is a professional exporter for tape making machine line and nail making machine line. We can have a very good control on the quality of our products, as well as ensure full range of products and competitive price.

Our Clients

Packing & Delivery

Packaging
Size	3000 (L) * 1600 (W) * 1600 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

701single shaft tape cutting machine

91.8% Response Rate

703 double shaft tape cutting machine

91.8% Response Rate

Hot sale BOPP adhesive film tape rewinding machine

91.8% Response Rate

FAQ

1.Q:Are you a factory or trading company?

A:We are a factory and we have years of experience of manufacture of rewinding and cutting machines.

2.Q:Does the machine be able to cut different size of tapes?

A:Yes absolutely , you can set any width by the PLC controler.

3.Q:Do you make machines according to specifications?

A:Yes,we do design different machines for special purpose.

4.Q:Do you have the manual book ?

A:Yes, and if necessary , our engineers are available to service overseas .And our machines are highly automatical and easy to operate.

5.Q:How long does it usually take you to make the delivery.

A:As a rule ,we deliver our machine within 1 month , and of cause it will take longer for special orders , but in no case would it take longer than 3 months.

6.Q:The voltage in our country is different from yours,does the machine can be changed?

A:Yes, we can make the change for customers.

7.Q:How about your warranty?

A:One year ,wearing parts not included.
