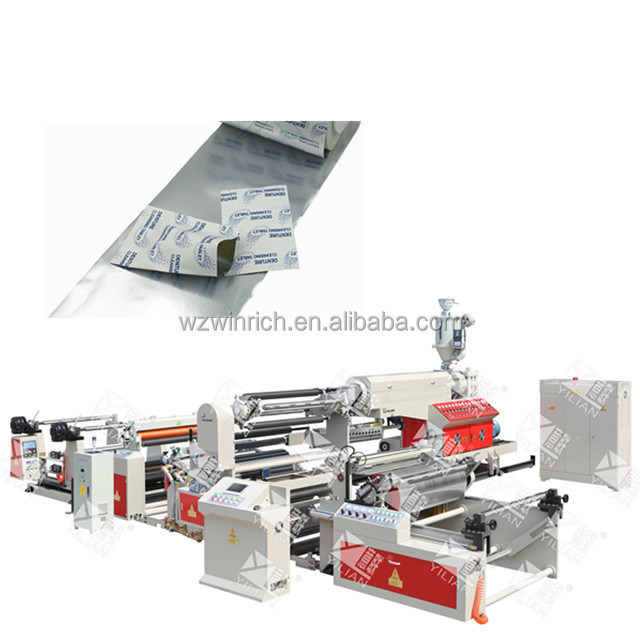

Commodity YILIAN aluminum foil laminating machines from SJFM Paper model and

1.0 Sets
MOQ
$81,000.00(>=1 Sets)
Price
Commodity YILIAN aluminum foil laminating machines from SJFM Paper model and
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Laminating Machine
Condition: New
Application: Commodity, Food, Medical, Glass Clean Cloth Package
Packaging Type: CANS, Film
Packaging Material: Paper, Plastic
Automatic Grade: Semi-automatic, Automatic
Driven Type: Electric
Voltage: 380V/50HZ
Power: 80-90kw
Model Number: SJFM-1300B
Dimension(L*W*H): 9200*8000*4000mm
Weight: 15000kgs
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Control Mode: PLC Control
Lifetime: More Than 10 Year
Brake: Powder Brake
Chiling Roller: Matt /Glossy /Embossing Roller
Plastic Feeding: Automatic
Raw Material: PE/PP/EVA
Die Mould: Taizhou City JC
Material Width Adjustment: Adjustable
Certification: CE Certification
Basic Infomation
Certification: CE Certification
Model Number: SJFM-1300B
Payment & Shipping Terms
Packaging Details: For Non woven bags laminating machine we packed 1.Fixed by steel wire. 2. Spray anti-rust oil to prevent rust. 3. 5 layers telescopic wrap film covering. 4. Packed inside of wooden cases 5.Logo can be printed on the boxes
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

Product Application Of Non woven bags laminating machine

1.Paper cups : PE coated paper

2.Non woven bags : Non woven fabric + PE

3.Release paper : Release paper + PE

4.Sugar packages : Thin paper + PE

5.Baby diaper : Thin non woven +PE

6.PP w0: sheet roll + PE

Specification of Non woven bags laminating machine
Applicable coating film resin
Coating grade like LDPE ,PP ,EVA,EAA etc
Based material
paper (35~425g/m2 ) , textile fibre ,non-woven fabric, Knited mesh, BOPP. BOPET .
Max working speed
100~150m/min
Max width of coating film
1200mm
Thickness of coating film
0.01–0.11mm
Inaccuracy thickness of coating film
±6%
Setting range of Auto-tension
10-200kg/entire width (constant tension)
Max extrusion
200KGS/H
Compound cooling roller
Φ510×1300mm (can choose)
Total power:
about 110 kw
Max rewinding diameter
Φ1300mm
Inside diameter of base material
Φ76
Machine total weight
about 15000kg
Overall dimension
9600mm×8000×3250mm(L×W×H)

Main Features of Non woven bags laminating machine

Product features Of  Extrusion laminating machine :
1.EPC STSTEM
2.CORONA TREATMENT
3.CHILLING ROLLER
4.PLC TOUCH SCREEN
5.TRIMING
6. AUTOMAT HYDRAULIC FILTER SCREEN CHANG DEVICE

Certifications
Detailed Images

Machine Parts

1.Strong machine frame made , stable running without shaking or movement.
2.Magnetic powder clutch with the perfect combination of auto constant tension controller along with the roll material diameter changing, tension is decreased proportionally to achieve automatic tension control.

Machine Parts

Pneumatic three chilling rollers type and inner water recycle design, makes PE coating evenly and firmly .

Main Features

Automatic non stop materials changer device reduce wastage and increase production efficiency .

Our Service

1 year machine quality warranty

24 hours online technical support

Oversea technician service is available

Packing & Delivery
Packages of Non woven basg  laminating machine
Quantities
Total 6 packages
Weight
15 T



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Containers
Quantities
1 *20 Ft + 1* 40HQ
Weight
15T



Loading Details
1300 mm width machine need 20 comtianers but still have some space rest . about 2 meters space in 20 Ft container ,customer can load other machine as well .
