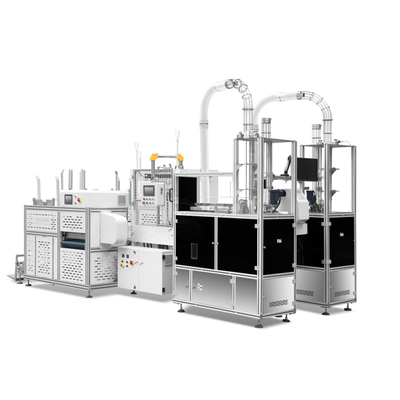

Paper cup packing machine (2 in 2 out)
Video: https://www.youtube.com/playlist?list=PLHDwrtsYMHCEke_yn9EJs47Z1KO0aOtNR
Paper cup packing machine and Case machine
Parameter for paper cup packing machine :
| Model | TCJ-QZB750 |
| Max.Packaging Speed | 16bags/min |
| Max.Unwinding diameter | 400mm |
| Effective Packaging Diameter | A:60-95mm B:95-150mmOther range can be customzie made |
| Max.Cup stacking height | 700mm Oversize can be customize made |
| Packaging Film Materials | HDPE.LDPE |
| Packaging Film Thickness | 15um-40um |
| Power Supply | 3KW |
| Air Req | 0.6MPa |
Parameter for case machine :
| Model | 750 |
| Max.Packaging Speed | 12 sleeves /min |
| Effective cup Diameter | 60mm-150mm |
| The number of layers | A : Single layer B : Double layers |
| Carton Length | 350mm to 500mm |
| Carton Width | 240mm to 450mm |
| Carton height | 330mm to 700mm Other size can be custom made |
| Electrical Req | 0.8KW three phase 380V 50HZ/60HZ |
| Air Req | 0.6MPa |
Paper cup inspection machine:
|
One inspection machine can work for two forming machines (make the same cups) We have two speed of inspection machine, Max speed 200pcs/min and Max speed 300pcs/min
The position of cups do you can inspect : 1) Check the cup edge and inside of cups (Standard) 2) Check the cup edge, inside of cups, and the bottom of cups(Optional).
Video Link: https://www.youtube.com/watch?v=DBi_QGQVRec&list=PLHDwrtsYMHCEke_yn9EJs47Z1KO0aOtNR&index=1&pbjreload=101 |
|
Our inspection machine compares with the independent inspection machine and the inspection device of the forming machine: 1) Our inspection machine can be installed on our packing machine. If you have our inspection machine, you don’t have to install a collection station. It is smaller than an independent inspection machine. You can save more space and let your worker works easier. 2) The inspection device installed on the forming machine is useless. The forming machine shakes a lot and will have Paper scraps, they will influence the camera of the inspection machine, the result of detecting is no meaning. 3)Inspect the cups by forming machine and independent inspection machine, the cups will send via long plastic pipe to packing machine after inspecting. The plastic pipe may cause secondary pollution. The result of detecting is not accurate. |
Ruian Tiancheng Packing Machinery Co., Ltd. As a professional manufacturer of packing machinery, was established in 2000.
It consists of Technical Development Department, Manufacturing Department, Sales Department and After-Sales Service Department
Our main products include: intelligent packing machine (Such as packing for paper,plastic,EPS cups,plastic/paper lids ,containers),shrink sleeve label making machines , roll rewinding and shrink wrapping machine ( Such as working for gift paper & wallpaper) ,star bow making machine.
For over 20 years,our company has been the leader in Chinese packing machinery area .Almost of our machines have CE certificate.
Company video:
https://www.youtube.com/watch?v=NQodD9K-YNI&list=PLHDwrtsYMHCEke_yn9EJs47Z1KO0aOtNR&index=44
More Videos:
https://www.youtube.com/c/AmyXiangpackingmachine
