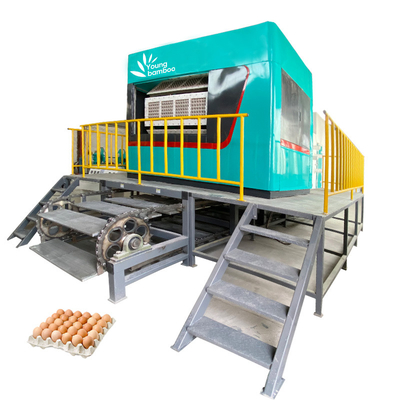

Automatic Paper Egg Tray Molding Full Egg Tray Forming Machine Egg Carton Box Paper Pulp Egg Tray Machine

1 Piece
MOQ
Automatic Paper Egg Tray Molding Full Egg Tray Forming Machine Egg Carton Box Paper Pulp Egg Tray Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Home Use, Retail
Showroom Location: Peru, Indonesia, Morocco, Kenya, Algeria, South Africa
Condition: New
Product Type: Egg Tray Machine
Processing Type: Paper Pulp Molding
Voltage: 220/380V
Power: 45KW
Dimension(L*W*H): 2800*1700*1400mm
Weight: 3000 Kg
Warranty: 1 Year
Production Capacity: 150 Pcs/min
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Motor, Pump, Bearing
Name: Egg Tray Machine
Finished Products: Egg Tray Egg Carton
Raw Material: Waste Paper
Application: Paper Egg Tray Moulding
Function: Produce Egg Tray
Production: Paper Pulp Package
Type: Automtic
Keyword: Egg Tray Machine 1000pcs
Usage: Making Paper Plate Dish Tray
Capacity: 1000-5000 PCS/hour (9 Inch Round Dish)
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1. Outside package: Standard export wooden cases 2. Inner package: Stretch waterproof film 3. Also can be packed according to clients' requirement. Egg Tray Machine
Product Description
Products Description
Automatic egg box machine environmentally friendly waste pulp paper recycle line egg tray making machine
Our molding machines and molding dies are fully designed by computer-assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving during the ten year practice. The pulp molding system can use all kinds of
waste paper to produce high quality molded fibre products. Such as, egg trays, egg boxes, apple trays, meat portion trays,
vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc.
it is a satisfyingly high return investment for the entrepreneurs or investors who wants a stable and consistent business.
Product Paramenters
Machine Model
1*3
1*4
3*4
4*4
4*8
5*8
5*12
6*8
Yield(p/h)
1000
1500
2500
3000
4000-4500
5000-6000
6000-6500
7000
Waste Paper(kg/h)
80
120
160
240
320
400
480
560
Water(kg/h)
160
240
320
480
600
750
900
1050
Electricity(kw/h)
36
37
58
78
80
85
90
100
Workshop Area
45
80
80
100
100
140
180
250
Drying Area
No need
216
216
216
216
238
260
300
Note:1.More plates ,more less water use
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meter,double layer 22-25 meter,multi layer can save workshop area
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
Mainly System
1.Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system. Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator
2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through
the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main
heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.
4. Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor
Details Images
The roller drive and cold pressing of our molding machine are all controlled by servo motor and precision reducer to complete
precise position control. This control method does not have the problem that the position of the drum cannot be accurately
positioned due to mechanical wear. Thereby greatly improving the service life of the mold. And it is not easy to block the
network, which improves the utilization rate of the machine.
The machine has a high degree of automation and a high safety factor. Once the machine fails, the machine will automatically stop.
the design has a cold pressing mechanism. During the suction process, the machine is squeezed by a cold die, and the moisture in
the product will be squeezed out, and it will be sucked out by vacuum at the same time. Compared with the products produced by
machines without cold pressing, the water content is reduced by more than 6%--8%. Reduce the load of the drying room and save
energy.

Our machine adopts sub-transmission design. That is, the three parts of transfer, roller and cold pressing are completed by 3
servo motors. The three motors are organically linked through PLC, and can be turned on individually or jointly. Not only is the
start-up operation simple, but the transfer speed can be greatly improved due to the separate control of the transfer, which
greatly improves the output of a single machine.
Company Profile
Henan Young Bamboo Industrial Co., Ltd. specializes in the production of household paper towel machines, toilet paper machines, napkin machines, facial tissue machines, egg tray machines and other paper machines and pulp molding equipment. The company covers an area of 10,000 square meters and has nearly 30 years of experience in R&D and export. We always adhere to the principle of quality first, meet customer needs as the purpose, continue technological innovation and development, and provide customers with the highest quality products, reasonable prices and comprehensive services. We welcome you to visit and cooperate at any time.
Shipping and Delivery
Certifications
FAQ
Q:What is your production cycle?
A:Usually the delivery time is about 7 - 15days after the payment confirmed. It is also depend on the machines. If need to customize the machine as your requirement, the producing time is longer.

Q:What kinds of mould do you produce?
A:We produce all kinds of pulping mold, such as egg tray molds,egg box molds,fruit tray molds,coffee cup tray molds,wine tray molds, industrial package mold etc.

Q:How should I choose the model?
A:1. You could tell us your request for select our existing model or newly designed mould. Just 30 holes egg tray pulp mould, wehave more than 100 types.
2. Or you can send us pulping products (such as egg tray/egg box) ,we can design the mould.

Q:How to install the mold?
A:We have professional technician guidance to assist you with installation.

Q: What is your payment term?
A:After confirming the PI, you need pay 30% T/T deposit to start production, 70% balance before shipment.
