Features

Specifications

Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops

Showroom Location: None

Condition: New

Product Type: Paper Cup Machine

Processing Type: Paper Folding Machine

Voltage: 380V 50HZ Or Customized

Power: 4.5KW

Dimension(L*W*H): 2115*1000*1700mm

Weight: 1680 Kg

Warranty: 1 Year

Production Capacity: 70 Pcs/Min

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC, Motor

Name: Paper Cup Forming Machine

Finished Products: Colorful Paper Cup

Raw Material: PE Coated Paper

Paper Cup Size: 3~16oz

Suitable Paper Weight: 135gsm--320 GSM (Recommend 170--280 GSM)

Cup Side Welding: Copper Heater

Control System: PLC+HMI

Automation: Fully Atuomatic

After Warranty Service: Video Technical Support

Basic Infomation

Payment & Shipping Terms

Packaging Details: Standard export package. Waterproof film and wooden box.

Supply Ability: 20 Set/Sets per Month Coffee Tea Paper Cup Making Machine

Product Description

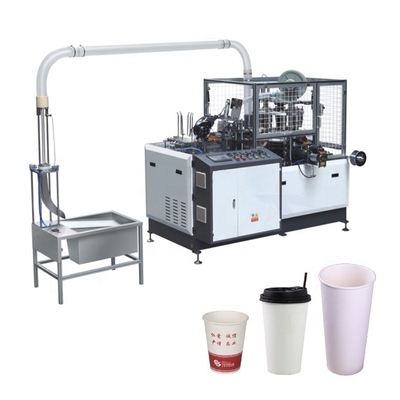

Automatic Disposable Coffee Tea Paper Cup Making Machine Price

Product Description

Brief Introduction Of Paper Cup Machine:

automatic paper cup making machine is a multi station automatic molding machine, which can produce different sizes of paper cups with a series of continuous processes including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand , silicone
oil lubricating bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. It is an ideal device for producing paper cake cup, beverage paper cup, tea cup, coffee cup, advertising paper cups, market paper cups, ice cream paper cups or other disposable cone type food paper containers.

Features:

1-Adopt Open Cam for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.

2-Main mechanism and moving parts are controlled by quality gears, which is more efficient and more stronger than chain and axis.

3-Machine inner with Single Shaft from Start to End for control whole machine Running which difficult broken and easy control Whole machine running.

4-The automatic oil lubrication system which keep machine high speed running
smooth, also keep the moving parts with long span life .

5- PLC control system, HMI operation panle, easy operation and labor saving.

Specification

Model	XT-800
Paper Cup Size	Bottom: Φ35-70mm; top: Φ45-90mm; height: 32-135mm;
Required Material Paper	Single side or double side PE coated paper
Required Paper Thichness	130-200g/m²
Power	4.5kw, 3 phrase, 380V, 50HZ
Compressed air	No
Cup side sealing	Copper bar heating
Bottom knurling	Electrical Heating
Capacity	60-90pcs/min
Overall Size	2115x1000x1700mm(LWH)
Total Weight	1680kg

Company Profile

HENAN XINGTU MACHINERY EQUIPMENT CO., LTD, located in Zhengzhou city, Henan province, China, is a leading professional and reliable machine manufacturer and whole solution supplier. We mainly supply various kinds of paper product making machine, like toilet tissue paper machine, paper cup making machine, paper straw making machine, paper tube core making machine etc. In the process of production, we always put the quality of products in the top position. High quality machinery and professional services also helped us win high praise from our customers domestic and overseas. Our machinery equipments have been sold to many cities in china and also exporting to many countries around the world, such as Europe, Africa, Australia, Nigeria, Ghana, Egypt, Saudi Arabia, Russia, Brazil, Pakistan, India and so on. We also establish good strategic cooperation with local distributors and agents.
Please send your requirements to us by email or phone calls and we will reply you immediately.

Service:
1. All customers’questions will be answered within 24 hours. You can ask for the detailed quotation, machine pictures or vedios by chatting online with us or sending us inquiry.
2. As a one-stop paper product making machine supplier, we can provide you all the equipments necessary for your paper cup factory. We can also assist you to purchase the raw material.
3. After you received the paper cup making machine, we will send you the installation vedios of each part and provide online installation guide service. Engineers overseas service is also available.
4. All machines have one year guarantee except the quick-wear part. We promise free lifelong technical support.

Packing & Delivery

1. The paper cup making machine will be packed with waterproof film and wooden box. The standard export package will ensure secure delivery of the machine.
2. The paper cup machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.

FAQ

1. Is it possible to produce paper cups of different sizes on the same paper cup making machine?
Yes.You just need to change the mold.

2. What information should the customer supply for getting a quotation?
1. the paper thickness/gsm and the paper cup you want to produce, single PE (hot drink cup) or double PE (cold drink cup or ice cream cup)?
2. the maximum and minimum dimensions of your paper cup (cup height, cup mouth diameter, and cup bottom diameter)?
3. what is the capacity that you want?

4. order quantity.

3. Delivery time:
30 days after we received your initial payment.

4. Do you accept L/C?
Yes. You can choose to pay by cash, TT, L/C or other ways.
If you pay by TT, the advance payment will be 30%, and the rest should be paid before delivery.

If You Are Interested In Paper Cup Machine, Please Send Us Inquiry Below!
